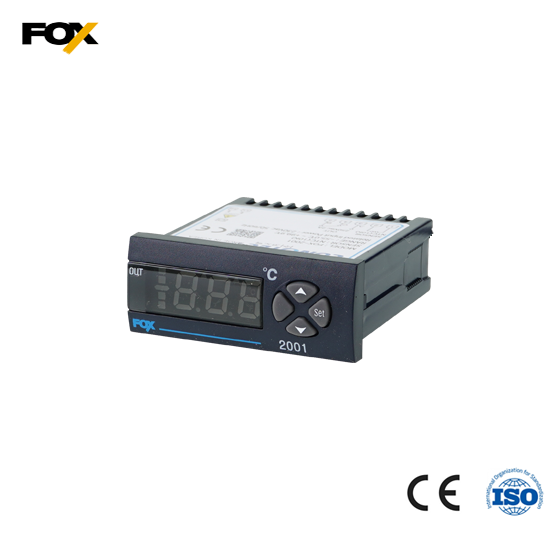

FOX-2001
· FOX-2001
Features
> Cooling or heating control
> Restrictive function for setting range
of the upper or lowest limit
> Correiction of the present temperature
(±10)
> Look function program (LOCK)
Product Data
Specification
Size | 77(W) x 35(H) x 78(D) |
Operating Range | -55.0 ~ 99.9℃ |
Input sensor | NTC(10KΩ) 3M |
Display Accuracy | ±1%rdg ±1digit |
Output | 1 relay (1c 250VAC 2A) |
Programming | Set / Up / Down Key |
Control Method | ON / OFF |
Power Supply | 230VAC 50/60Hz |
Order production | 110VAC 50/60Hz 12V or 24V AC/DC( ±10% ) |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 270g |
Part name
Size & Dimension

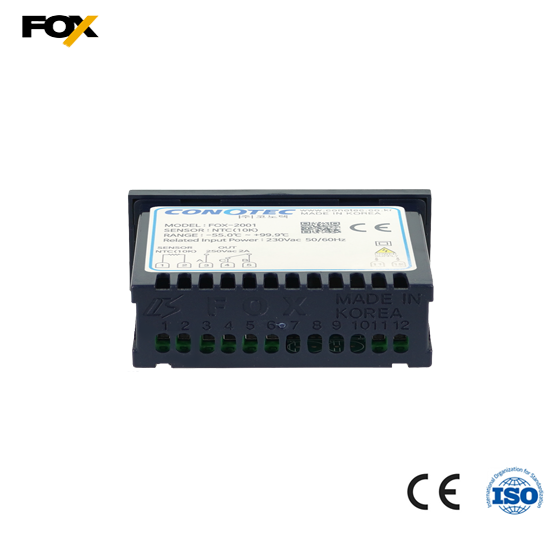

Connection
※ Output : 250VAC 2A
Please make use of the power relay or margnet surely.
