FOX-301AR1

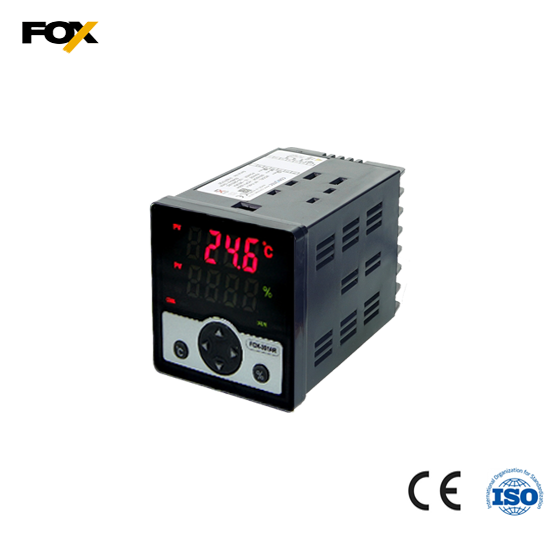

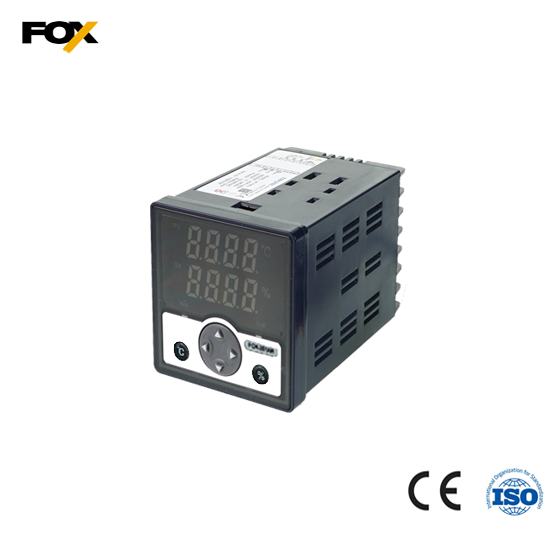

· FOX-301AR1
Features
> Temp : Cooling / heating each control
> Humi : Dehumi. / Humi each control
> RS485 Communication
Product Data
Specification
Operating Range | (Temp) -40.0~65℃ (Humi) 10~95% RH |
Input sensor | HCPV-220NH |
Display Accuracy | (Temp) ±1%rdg ±1digit (Humi) ±3%rdg ±1digit |
Output | 4 relay (4a 250VAC 2A), 1R(Temp) 2R(Temp), 3R(Humi), 4R(Humi) |
Programming | ℃ Set / % Set / Up / Down / Left / Right Key |
Control Method | ON / OFF |
Power Supply | 100 ~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 460g |
Part name
Size & Dimension
Connection
