DSFOX-SLE30 (Release in July)
· [SL-Series] Refrigeration and Cooling Temp Controller / Compressor, Defrost, Fan Control / Ethernet Communication

Features

Compressor / Defrost / Fan Control (3 Relay)

Selectable Periodic Defrost or Compressor Accumulation Defrost

Selectable Celsius ℃ / Fahrenheit ℉

Ethernet Communication (TCP/IP), using LAN cable

Real-time Monitoring possible by integrating with IOT server


▶ Want to know more about IOT Controller advantages ?(Click)

Product Data

Specification

 Size (mm)

 77(W) x 35(H) x 66.5(D)

 Operating range

 (Celsius) -55.0 ~ 99.9℃

 (Fahrenheit) -60 ~ 200℉

 Input sensor

 NTC(10KΩ)

 Display Accuracy

 ±1%rdg ±1digit

 Output

 3 relay (3a 250VAC 2A)

 Programming

 Set / Up / Down / Back Key

 Control Method

 ON / OFF

 Power Supply

 100~240VAC 50/60Hz

 Ambient Temp/Humi

 0 ~ 55℃ (32~131℉)

 35 ~ 80% RH

 Function

 COPM / DEFROST / FAN / LANWIRE COMMUNICATION

 Cutting Size (mm)

 71(W) X 29(H)

 Gross Weight 1PC

 215g

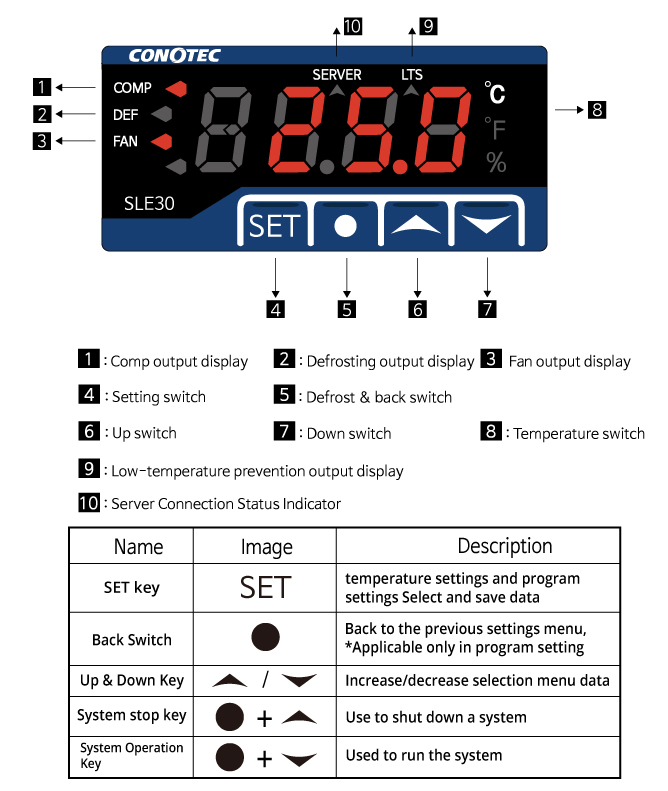

Part name

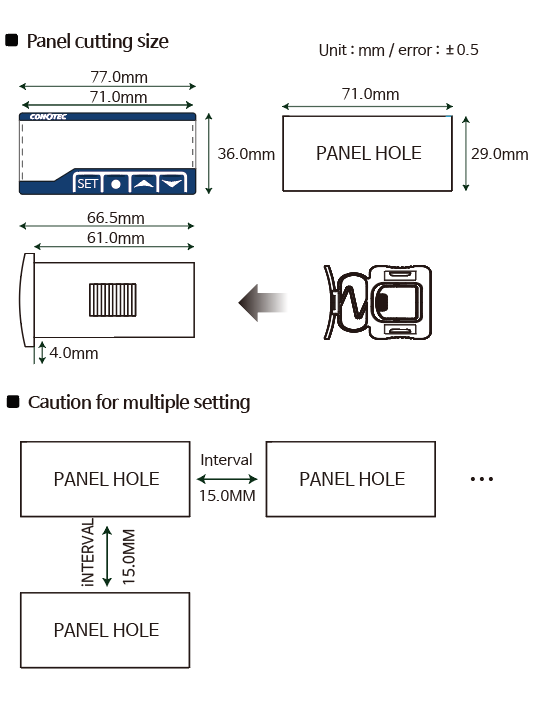

Size & Dimension

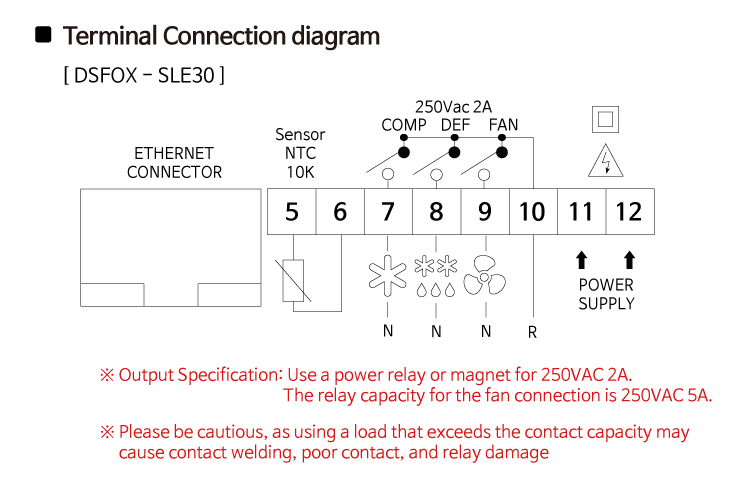

Connection




Related sensors and products
