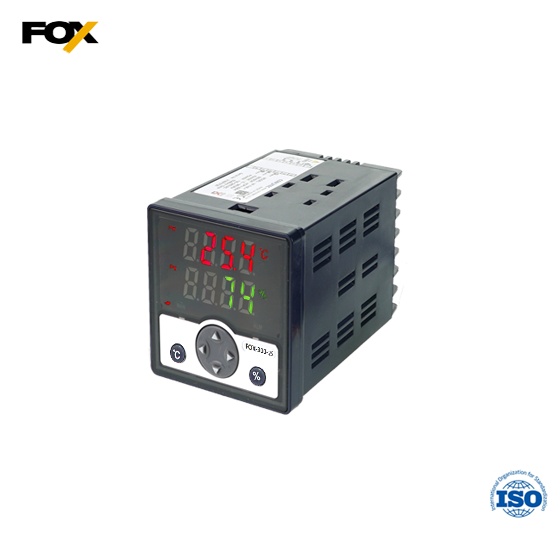

FOX-300-2S1
· FOX-300-2S1
Features
> Control concurrently of temperature
and humidity
> Correction function of
present temperate or humidity
> RS485 Communication
(appicable to 300AR)
Product Data
Specification
Operating Range | (Temp) -40.0~65℃ (Humi) 10~95% RH |
Input sensor | HCPV-220NH |
Display Accuracy | (Temp) ±1%rdg ±1digit (Humi) ±3%rdg ±1digit |
Output | 2 relay (2c 250VAC 2A) 1R(온도), 1R(습도) |
Programming | ℃ Set / % Set / Up / Down Left / Right Key |
Control Method | ON / OFF |
Power Supply | 100 ~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 460g |
Part name
Size & Dimension

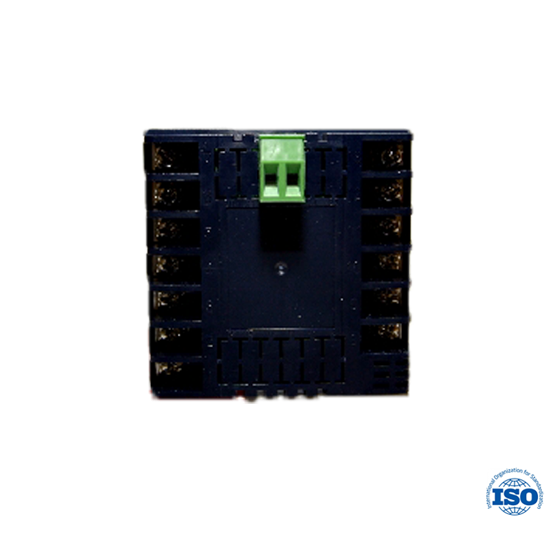

Connection
