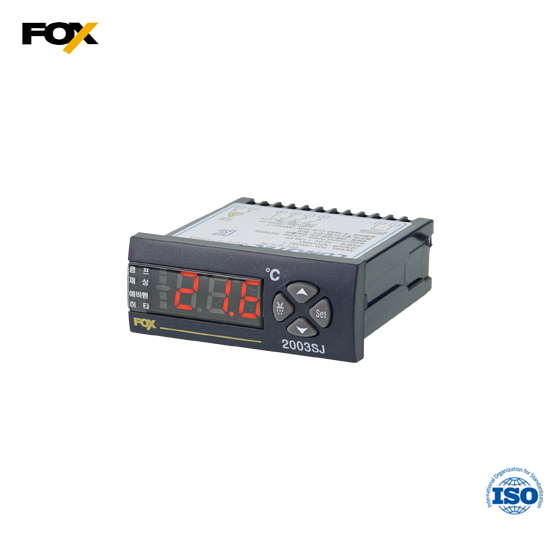

FOX-2003SJ-1
· FOX-2003SJ-1
Features
> Only use Cooling & freezing
> Defrosting function
> FAN control
> Correction of the present temperature
> FAN delay time after defrosting
Product Data
Specification
Size | 77(W) x 35(H) x 78(D) |
Operating Range | -55.0 ~ 99.9℃ |
Input sensor | NTC(10KΩ) 3M |
Display Accuracy | ±1%rdg ±1digit |
Output | 3 relay (3a 250VAC), 1R (Comp) 2R (Defrost), 3R (RAN) /1R, 2R(250VAC 2A), 3R(250VAC 5A) |
Programming | Set / Up / Down / Df Key |
Control Method | ON / OFF |
Power Supply | 230VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 282g |
Part name
Size & Dimension

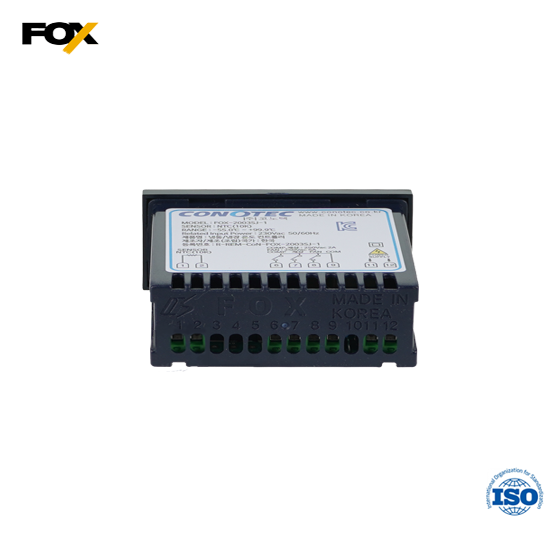

Connection
※ Output : 250VAC 2A, FAN relay 5A
Please make use of the power relay or magnet surely.
