CONOTEC

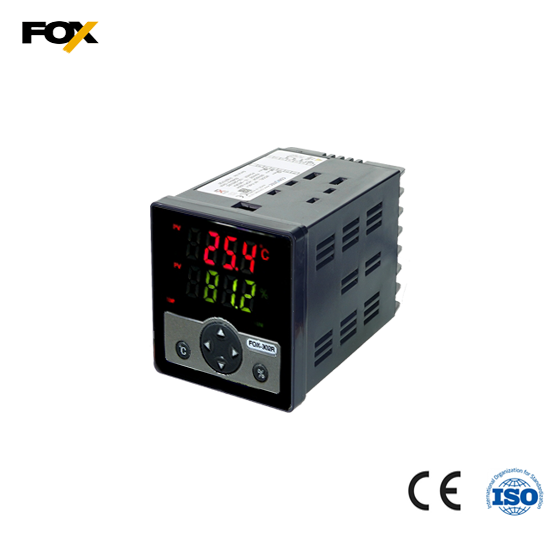

FOX-302R1

· FOX-302R1

> 1-stage output :

temp & humidity control output

> 2-stage output :

alarm output of temp. humidity

> Alarm function of the highest of

lowest limit

> RS485 Communication

제품 문의하기

Operating Range	(Temp) -55.0 ~ 99.9℃ (Humi) 10 ~ 95% RH
Input sensor	FS-200N / HCPV-220H
Display Accuracy	(Temp) ±1%rdg ±1digit (Humi) ±3%rdg ±1digit
Output	4 relay (4a 250VAC 2A), 1R(Temp) 2R(Temp), 3R(Humi), 4R(Alarm)
Programming	℃ Set / % Set / Up / Down / Left / Right Key
Control Method	ON / OFF
Power Supply	100 ~ 240VAC 50/60Hz
Ambient Temp/Humi	0 ~ 55℃ (32~131℉) 35 ~ 80% RH
Gross Weight 1PC	500g
