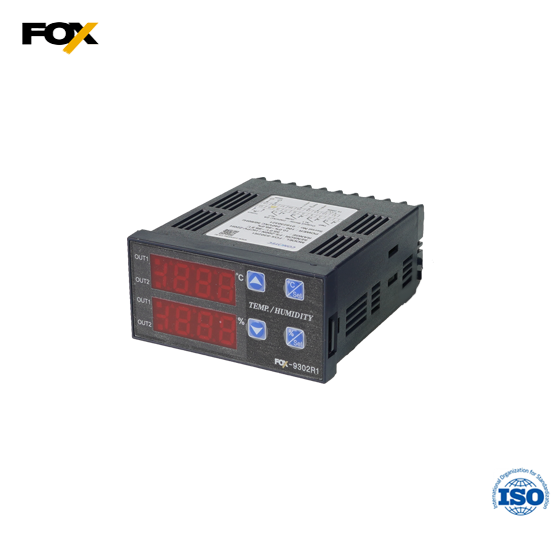

FOX-9302R1
· FOX-9302R1
Features
> 1-stage output :
temp & humidity control output
> 2-stage output :
alarm output of temp. humidity
> Alarm function of the highest of
lowest limit
> RS485 Communication
Product Data
Specification
Operating Range | (Temp) -55.0 ~ 99.9℃ (Humi) 10 ~ 95% RH |
Input sensor | FS-200N / HCPV-220H |
Display Accuracy | (Temp) ±1%rdg ±1digit (Humi) ±3%rdg ±1digit |
Output | 4 relay (4a 250VAC 2A), 1R(Temp) 2R(Temp), 3R(Humi), 4R(Alarm) |
Programming | ℃ Set / % Set / Up / Down Key |
Control Method | ON / OFF |
Power Supply | 100 ~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 400g |
Part name
Size & Dimension
Connection
with CONOTEC
